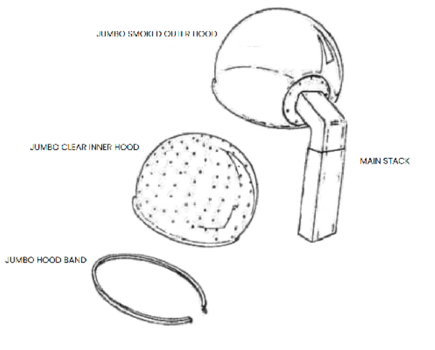

Inner and Outer Hood Assembly
- Remove inner and outer hoods from the box and plastic wrapping.
- Remove the hood band from the outer hood.
- Insert inner hood into outer hood. Be sure to align slot in flange on the front part of the hood so that the non-perforated sections of inner hood will be to the sides (This is to protect customers’ ears from heat).
- Install hood band.
*Assembly for Comfort Aire, Hot Spot and Ion-Tech products
Hair Dryer Operating, Usage and Maintenance
Hair Dryer Instructions
Installation:
Please use proper care when mounting your dryer.
• Simply plug the supply cord into any 110-115 volt 60 cycle AC outlet.
• Be sure dryer is at minimum 6-8 inches from the wall to prevent damage to hood when it is raised.
How to Operate:
- Raise hood to desired position for seating patron.
- For instantaneous heat, leave hood upright for 10 seconds before lowering. This buids up warm air immediately and eliminates cold stream of air hitting wet head. Place patron under dryer, lower hood to proper position for drying.
- Set the dryer heat control to the degree of heat desired for comfortable drying.
- Set the timer to the desired time.
- Do not tamper with the timer or thermostat on your dryer.
User Instructions:
- Your dryer is equipped with a heat sensing thermostat. If your dryer malfunctions and becomes too hot, the thermostat will shut off the heating element. After cooling to proper temperature, element will again operate normally.
- If dryer will not be used for a period of time, wrap cord around neck of hood and store dryer in a cool, dry area.
- This is a commercial use dryer, and all servicing should be performed by an authorized representative.
Maintenance:
Caution: Remove plug from wall socket before attempting any cleaning, service or repairs.
Your dryer is equipped with low-wattage heating elements ample for dependabte drying and economical operating costs. The principle involved in this dryer is to
regulate temperatures and air in the correct quantities in order to dry evenly, rapidly and comfortably.
To clean the exterior of your dryer, wipe with damp cloth only.
This dryer is equipped with a foam filter. To operate efficiently, it is imperative that the flow of air intake be unobstructed from dirty or clogged filters. For best results, inspect filter weekly and clean if necessary. Cleaning is simple and quick.
To clean filter:
- Remove filter from dryer.
- Wash in warm soapy water. Then, rinse with clear water.
- Shake out excess water.
- Replace filter.
To clean hood assembly:
- Snap back the hook that’s on the latch of the trim ring. The trim ring will spring apart and slip off hood. The inner hood will drop out.
- Wash in warm water with a mild detergent. DO NOT use solvents to clean or wash hoods.
- Remove outer hood with stack; use the same procedure for clean as used for the inner hood.
- Lay outer hood and stack on a flat surface.
- Insert inner hood and replace trim ring. Position the latch so that it will be at the back of the hood. Latch hook on trim ring.
Hair Dryer Operating, Usage and Maintenance
Commercial Hair Dryer Warranty
Your Hair Dryer has been carefully made by skilled workers and subject to thorough inspection and tests before shipment. It is warranted to the original purchaser to be free of defects in material and workmanship for a period of ONE YEAR from date of purchase.
By accepting this warranty the purchaser agrees that the obligation of the seller under this warranty shall be to repair or replace any part or parts found to be defective upon return of dryer or defective
parts, transportation charges prepaid. Your Hair Dryer or replacement parts will be returned, transportation charges collect to the original purchaser. This warranty does not apply to the finish of the cabinet nor to the hood.
This warranty does not apply to the dryer or any part thereof which should reveal any tampering, misuse, accident or abuse, or use on electrical circuits other than those specified on the registered number plate located on back of dryer. Nor shall the seller be liable for damage to any person or to any property other than the dryer covered by the warranty. Seller reserves the right to make changes in design and improvements in its dryers without imposing any obligation upon the Company to install same on products heretofore manufactured.
No person is authorized to change any of the terms of this warranty.
Hair Dryer Operating, Usage and Maintenance
Important Safety Instructions. Please read all instructions before using.
Danger! Keep Away From Water
As with most electrical appliances, electrical parts are electrically live even when the switch is off.
To reduce the risk of electrocution:
• Always unplug appliance immediately after using.
• Do not use while bathing.
• Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
• Do not reach for an appliance that has fallen into water. Unplug immediately. See grounding instructions on page 5.
This appliance must be grounded. In the event of an electrical short-circuit, grounding reduces the risk of electric shock by providing a path of low resistance for the electric current. This appliance is equipped with a cord having a grounding wire with a ground-
ing plug. The plug must be grounded into an outlet that is properly installed and grounded in compliance with all local codes and ordinances.
Danger! Improper use of the grounding plug can result in a risk of electric shock. See grounding instructions on page 5.
Warning:
To reduce the risk of burns, electrocution, fire or injury of persons.
1. An appliance should never be left unattended when plugged in.
2. Close supervision is necessary when this appliance is used by, on or near children or invalids.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working proper1y, if it has been dropped or damaged, or dropped in water. Return the appliance to a service center for examination and repair.
5. Keep the cord away from heated surfaces.
6. Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch, where the opening may be blocked. Keep the air openings free of lint, hair, etc.
7. Do not sleep while in use.
8. Never drop or insert any object into any opening.
9. Do not use outdoors.
10. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
11.. Do not direct hot air toward eyes or heat sensitive areas.
12. Connect this appliance to a properly grounded outlet only.
Hair Dryer Operating, Usage and Maintenance
Important Safety Instructions. Please read all instructions before using.
Grounding
This appliance must be grounded. In the event of an electrical short-circuit, grounding reduces the risk of electric shock by providing a path of low resistance for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be grounded into an outlet that is properly
installed and grounded in compliance with all local codes and ordinances.
1. If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to either flat blade terminal. The wire with insulation having an outer surface that is green (with or without yellow stripes) is the grounding wire.
2. Check with a qualified electrician or serviceman if the grounding instructions are not completely understood, or if in doubt as to whether the appliance is properly grounded.

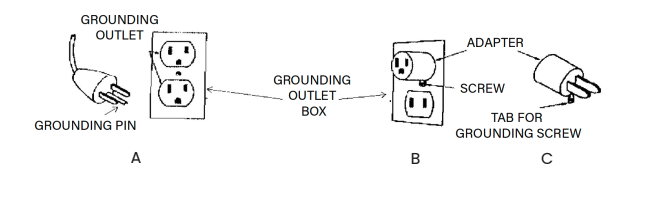

3. This appliance is for use on a nominal 120 volt circuit, and has a grounding plug as illustrated below in sketch A.
If a properly grounded outlet is not available, a temporary adapter (like the adapter illustrated in sketches B & C), may be used to connect the plug to a 2-pole receptacle.
The temporary adapter should only be used until a properly grounded outlet can be installed by a qualified electrician.
The green rigid ear, lug, etc. extending from the adapter (sketch C) must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by the screw (as illustrated below in sketch B).
4. If it is necessary to use an extension cord, use only a three-wire extension cord that has a three-prong grounding plug and a three-slot receptacle. that will accept the plug on the appliance.
5. Replace or repair a damaged cord.
Hair Dryer Operating, Usage and Maintenance

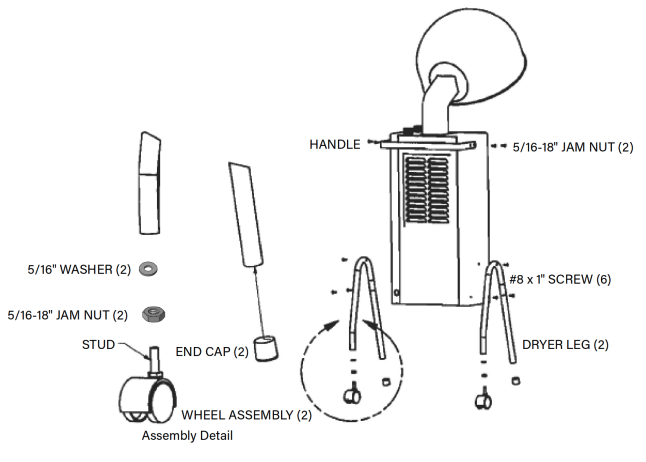

Assembly Instructions of Hair Dryer Legs and Handle
Kit contents:
Qty Description
2 Dryer Legs
2 End Caps, Black
2 Wheel Assemblies
1 Handle
2 Washers, 5/16”
2 Jam Nuts, 5/16-18”
6 Screws, #8 x 1
4 Screws, #10 x 1/2”
Steps for assembly:
1. Press black end cap onto end of each leg.
2. Screw jam nut onto wheel asembly stud, slip 5/16 washer over stud and screw into dryer leg.
3. Assemble both dryer legs onto hair dryer with #8 x 1” screws (3 per leg).
4. Set dryer upright on legs. Stablize dryer by adjusting wheel stud. Once set, lock into position by securing the jam nut against the leg end.
5. Attach handle to the dryer with #10 x 1/2” screws (2 per side).
Hair Dryer Operating, Usage and Maintenance
Assembly Instructions of Hair Dryer Legs and Handle

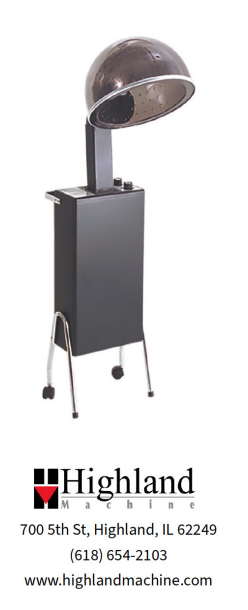

Features:
• UL/CSA Approved
• 100 Watt Convenience Outlet
• Adjustable Thermostat including Perm Setting
• Electronic 60-minute Timer with Cool Down Period
• Removable Air Filter
• Dryer Leg and Handle Sets available as an accessory
• Made in USA
Dimensions:
Cabinet: 12-1/4” W x 23-3/4” H x 6-1/2” D
Hood: 12-1/4” (inside diameter)
Air Velocity:
375 / 400 CFM
Electrical Rating:
UL AND CSA Approved
120 VAC. 60 Cycle, 8.0 Amps (without Convenience Outlet)
120 VAC, 60 Cycle, 9.7 Amps (with Convenience Outlet)
Heat Output:
(Tested at 118 Volts, 8-8.5 Amps, 980 Watts)
Thermostat Setting:
Low
Medium
Perm
BTU / Hour = 3334
Temparature:
85 -90 degrees Fahrenheit
98-100 degrees Fahrenheit
140+ degrees Fahrenheit
